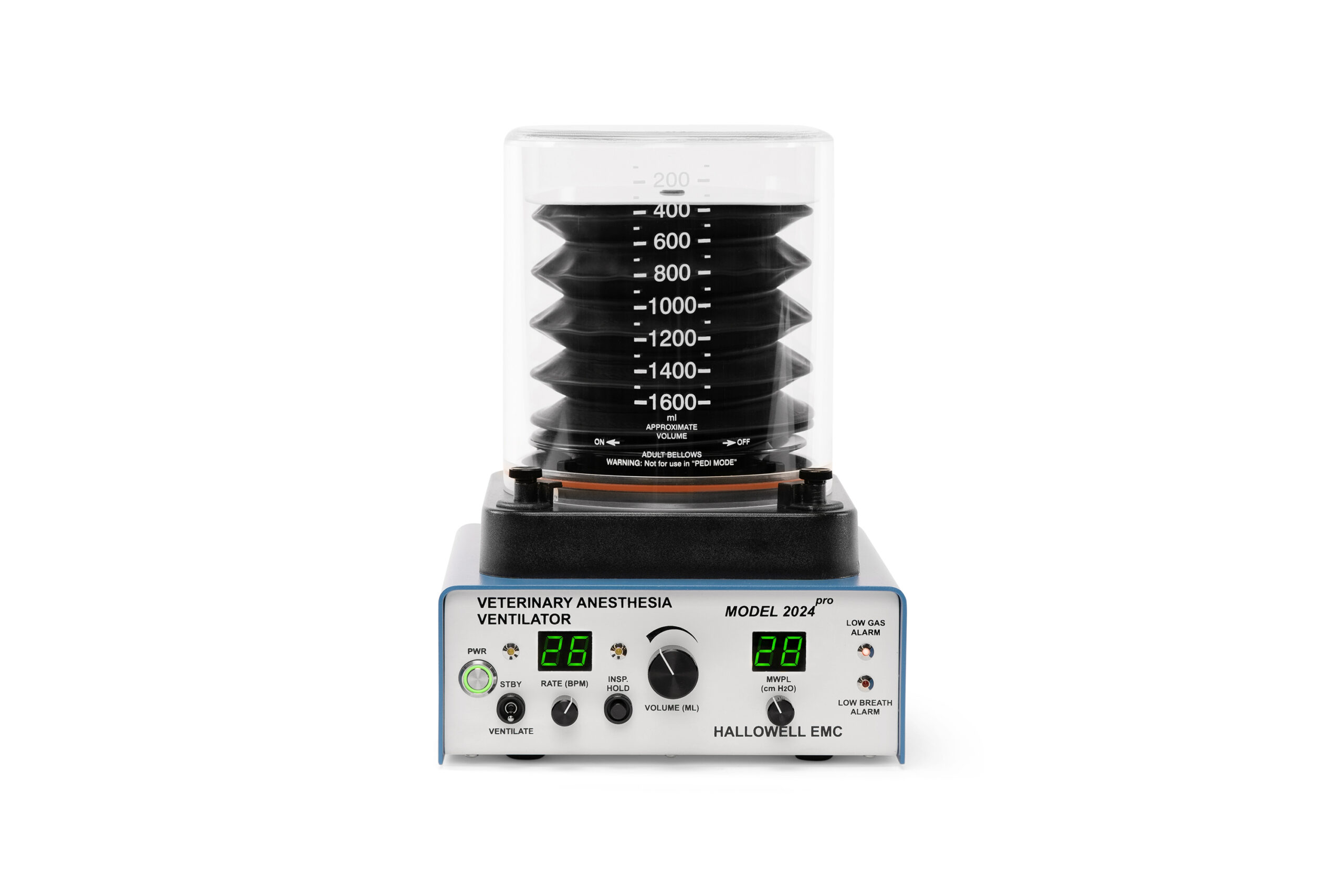

Model 2024 PRO Anesthesia Ventilator 300-1600ml


*Special Introductory Pricing*

Purchase the 2024 PRO for the price of the 2002 PRO!

The Model 2024PRO Series is a microprocessor-controlled unit providing the latest in electronic updates. Developed as a compliment to your already owned 2002 PRO, all parts, accessories, and consumables for the Model 2024PRO and Model 2002PRO are completely interchangeable.

All PRO series ventilator purchases now include our Ventilator Accessory Kit.

Also Available with both 0-300ml pediatric and 300-1600ml sized bellows and housing, or just the 0-300ml or 1600-3000ml Extra Large size.

SKU: N/A Category:
Product Description

Additional Information

The single valve turns a total of nine and a half times; the first two and a half turns utilize the slight, minute changes for the pediatric animal patient while the remaining rotations are to be used with the adult and extra-large sized bellows and housings.

Low 50 psi Supply Gas Alarm – The Low Supply Gas Alarm is activated when the supply gas pressure drops below 35 psi (2.4 bar). During an alarm condition, the red light on the front panel is illuminated and a steady, continuous tone is heard. This alarm automatically resets when the pressure increases above 40 psi (2.7 bar).

All Hallowell Ventilators are equipped with dual airway pressure alarms that monitor and sound when the Peak Inspiratory Pressure (PIP) of any breath either exceeds the preset Maximum Working Pressure Limit (MWPL) or fails to reach 6 cm H2O as in the case of a disconnect.

Volume – Cycled microprocessor-controlled ventilator.

Time cycled - Ensures consistently spaced breaths. The possibility of       stacking breaths or auto-PEEP is eliminated by keeping the I:E ratio constant at 1:2. This means that regardless of the respiratory rate, setting two-thirds of the breath will remain for expiration. The respiratory rate is adjustable from 6 - 40 breaths per minute (BPM).

 Volume constant - Ensures that each delivered breath will have essentially the same volume, independent of changes in patient compliance and airway resistance. The deliverable tidal volume (TV) range is from approximately 20 cc to 3,000 cc.

Pressure Limited - Provides for patient safety by limiting the maximum working pressure (MWPL) to a user adjustable pressure range of 10 - 60 cm H2O.

The Model 2024PRO does not replace the Model 2002PRO, the functionality of both units is still top of the line for veterinarian use. Technical Services, Replacement Parts and Repairs remain available and will continue for all HEMC units still in service.
